Plot2EMF: HP-GL Plot to Windows MetaFile Conversion Utility
Version 5.4.1110 - 14. February 2018

Overview

Plot2EMF
Download
Plot2EMF

What is PlotEMF?

Plot2EMF is a 32-bit utility for Microsoft Windows (≥ XP) that will convert HP-GL and HP-GL/2 plot files (e.g. .PLT files generated by AutoCAD) to a Windows Enhanced MetaFile format that can then be copied or imported into various Windows-based applications.

Why Plot2EMF?

Microsoft Office 4.x (Office 95) included a HP-GL import filter, but for some reason, this was not distributed with the later Microsoft Office releases. However, there is still a need to import HP-GL files into various Windows applications, so Plot2EMF (Plot to Enhanced MetaFile) was developed to fill this need.

What is an Enhanced MetaFile?

A MetaFile is defined as "A collection of structures that stores a picture in a device-independent format." (From the Microsoft Win32 Software Development Kit helpfile). The Windows MetaFile format (.WMF files) was introduced with Windows 3.x, and was enhanced (.EMF files) for use with Windows 9x and Windows NT 4.x.

Because the metafile contains a list of drawing commands, and not the drawing itself, metafiles can be scaled much easier than pictures (bitmaps).

Download

Plot2EMF
Download

Downloading the Plot2EMF Installer

  1. Download the p2einstall54.exe file from http://www.informatics-consulting.ch/software/plot2emf/p2einstall54.exe (Switzerland) or
    http://www.informatics-consulting.de/software/plot2emf/p2einstall54.exe (Germany)
    and store it into a temporary directory, e.g. C:\TEMP

  2. Double-click on the p2einstall54.exe file to install Plot2EMF.

The p2einstall54.exe program is a delivery shell for the Plot2EMF (MSI) installer. The following options are available with p2einstall54.exe:

--extract (or) /XExtracts the MSI file only (without starting the installation).
--dir (or) /D [path]Specifies where the MSI file should be stored.
--keep (or) /KSpecifies that the MSI file is not deleted after installation.
--quiet (or) /QHides the progress window (in implies --keep).
--version (or) /VDisplays the version information for both Plot2EMF and the installer.
--help (or) /?Displays these instructions.

If you like what you see and would like to unlock the full potential of Plot2EMF, please Register your copy! Thank you!

Register

Plot2EMF
Download

Why Register?

There are several good reasons to purchase a license of Plot2EMF:

  • Plot2EMF is not free. It is shareware, which you must register or discontinue using after you have evaluated it.
  • You will receive support from the author in case of problems or questions.
  • You will be contributing to the continued maintenance and development of Plot2EMF.
  • You will be the first to hear about new versions as they are published.
  • You'll feel much better about using this fine tool.

What is Shareware?

Plot2EMF is not free! Plot2EMF is shareware, meaning that you are entitled to evaluate it before you decide to purchase it. This evaluation period allows you to use Plot2EMF on a single computer for 30 days. After this evaluation period, you must either register your copy of Plot2EMF, or discontinue use and remove it from your system. Since it is shareware, you are free to (and encouraged to) distribute it (in it's original form) on to others. However, registration information may not be distributed.

Private Persons:

If you find this program useful and find that you are using Plot2EMF and continue to use it after a reasonable trial of 30 days, you must make a registration payment of € 17,50 to James Greene (in addition to any shipping and handling fees). This registration fee will license one copy for use on any one computer at any one time. You must treat this software just like a book. An example is that this software may be used by any number of people and may be freely moved from one computer location to another, so long as there is no possibility of it being used at one location while it is being used at another. Just as a book cannot be read by two different persons at the same time. A single-user license for Plot2EMF costs € 17,50, including the on-line registration fees, excluding any applicable VAT. You can register on-line at BMTMicro.

Commercial Users:

Commercial (or corporate) users of Plot2EMF must register and pay for their copies of Plot2EMF within 30 days of first use or their license is withdrawn. Site-License arrangements may be made by contacting James Greene. For more information about registering, please see the Plot2EMF Order Form.

Screen Shots

Plot2EMF
Download

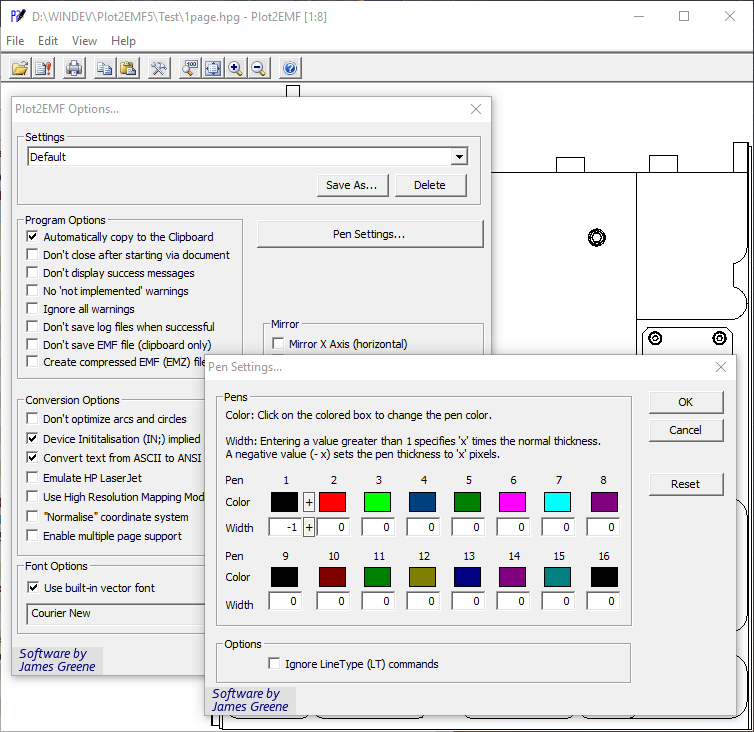

Screen Shots

Plot2EMF

For more information about the full range of features, Download Plot2EMF and try it out. If you like what you see, please Register your copy to unlock its full potential! Thank you!

Documentation

Plot2EMF
Download

Plot2EMF Version 5.4.1110 - 14. Feburary 2018

  • Added an automatic check for updates when Plot2EMF starts.
  • Added the Shrink Wrap command to the View menu, to resize the Plot2EMF window to the visible image.
  • Updated to the latest LIBPNG (1.6.34) and ZLIB (1.2.11) libraries (see Credits).
  • Compiled with gcc 6.3.0, tested on Windows 10 (64 bit) and Windows XP (32 bit).

Plot2EMF Version 5.3.1102 - 20. January 2016

  • Updated to the latest LIBPNG (1.6.21) and LIBJPEG (9b) libraries (see Credits).
  • Corrected my E-mail address and URL in the "Register" and "About" dialog boxes to informatics-consulting.de.
  • Compiled with gcc 4.8.1, tested on Windows 10 (64 bit) and Windows XP (32 bit).

P2E4PV.DLL Version 5.3.072

  • Simple recompile with the latest MinGW compiler.

CALLP2E Version 5.3.062

  • Corrected my E-mail address and URL to point to informatics-consulting.de.


Back to the Shareware Overview


This page was last updated on Wednesday, 14. February 2018.
